BougeRV 200W 12V Solar Powerhouse Kit for Off-Grid Adventures
Dreaming of going off-grid? BougeRV's 200W 12V Solar Kit is your ultimate solution! Build your very own solar system with ease.

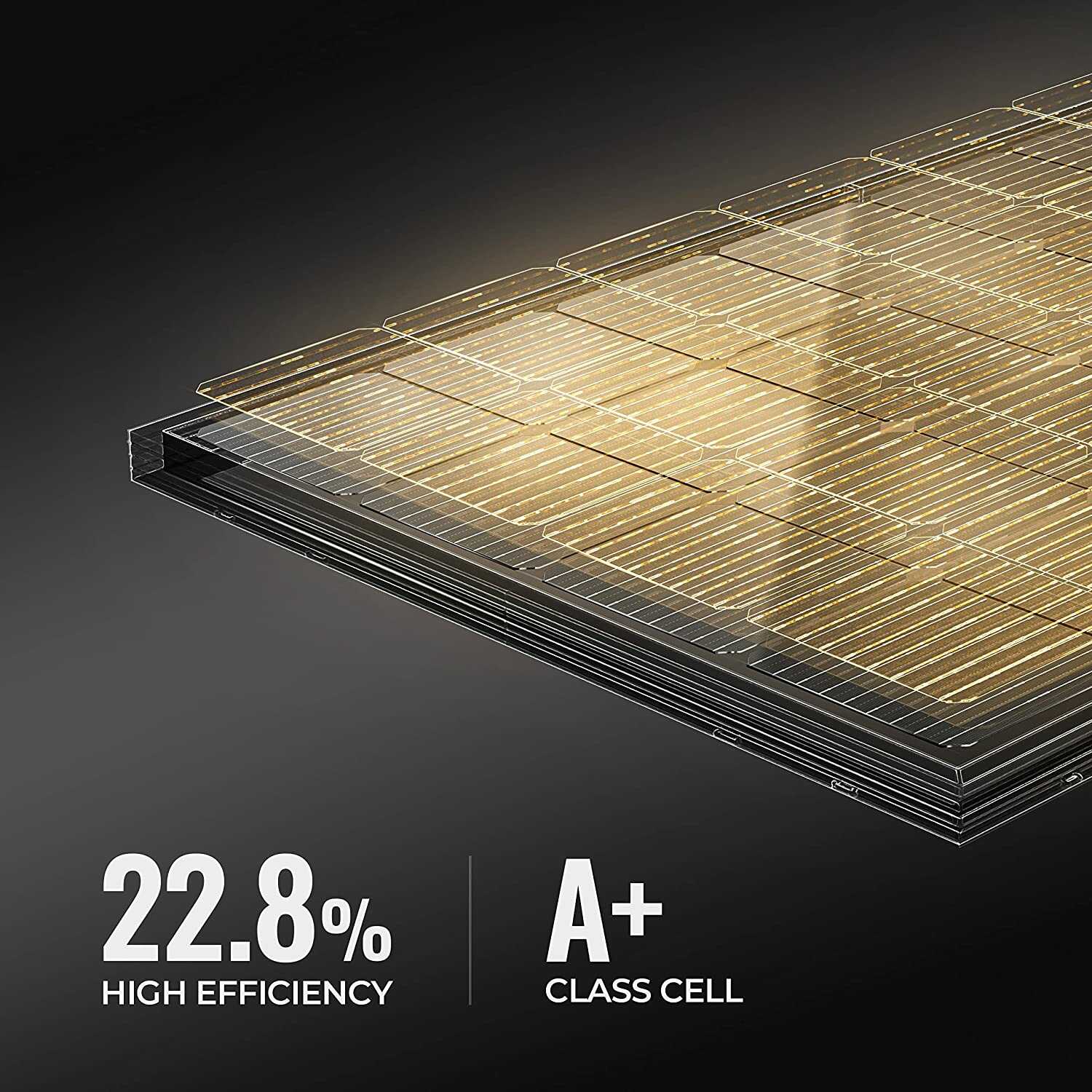

• High-quality monocrystalline solar panel for efficient power generation
• Charge controller to safeguard your system from various issues
• All necessary cables and mounting hardware included

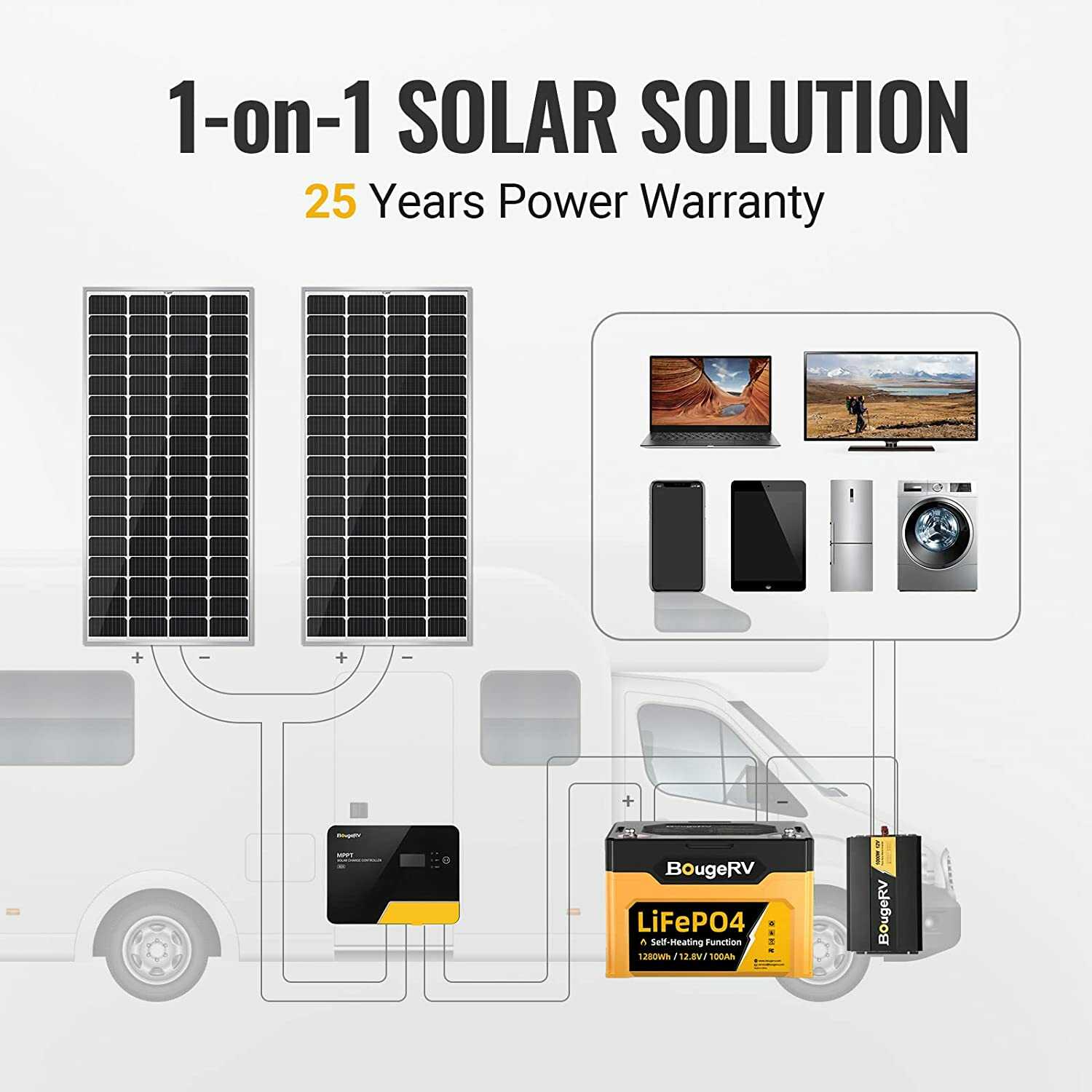

This kit is perfect for RVs, cabins, boats, and any off-grid hideout. Harness the sun's power now!
Features
• Generates 1200WH of power per day with just 6 hours of daylight
• Weather-resistant design for cold and harsh outdoor conditions
• Efficient kit with no-load loss

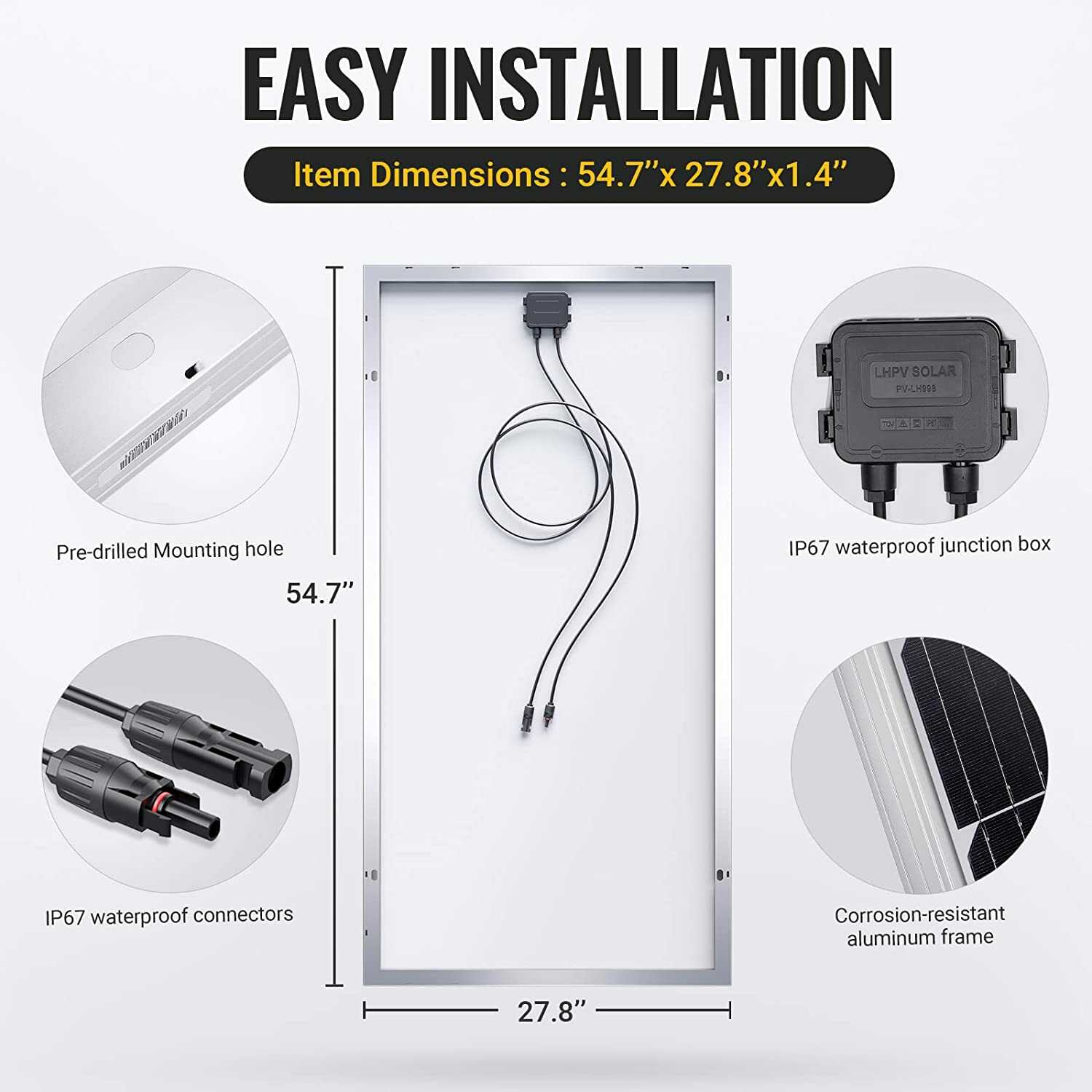

• Hassle-free installation, great for beginners
Specifications:
Solar Panel
Peak Power Pm(W): 200W
Open Circuit Voltage: 23.4V
Max. Power Voltage Vmp: 19.8V
Short circuit Current Isc: 11.17A
Max. Power Current Imp: 10.10A
Solar Cells Efficiency: 22.5%

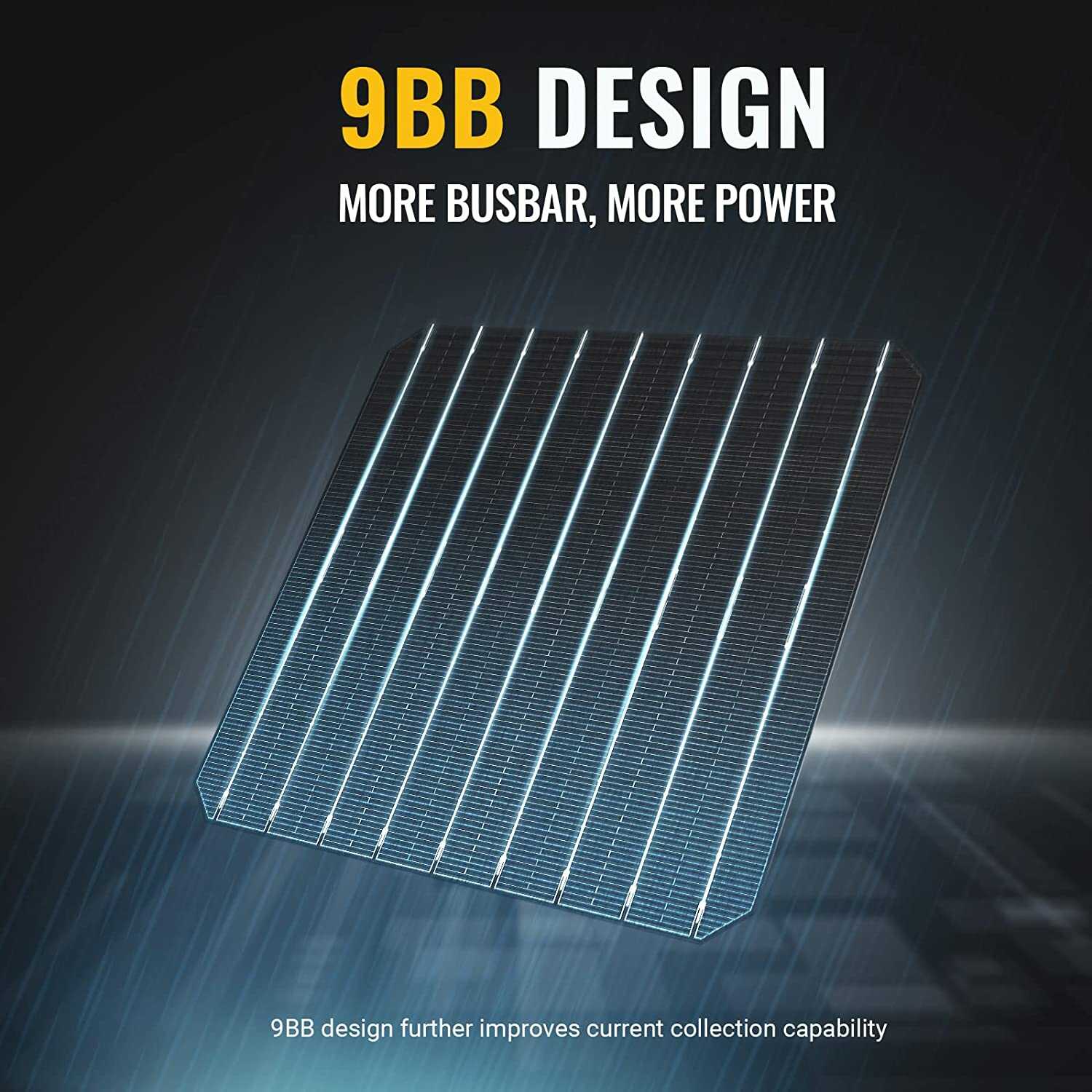

Solar Cell: Monocrystalline & 9BB Cell
Weight: 29.54 lbs
Warranty: 18 months
Dimensions: 58.27 x 26.38 x 1.38 in
Charge Controller
Nominal Voltage; 12V/24V
Max. PV Input Voltage: 50 VDC
Weight: 0.64 lbs
Compatibility: SLD/FLD/Gel/Lithium-ion/LiFePO4/Ternary Lithium
Maximum Allowable Voltage; <32V
Rated Charge Current: 30V
Operating Temperature: -31°F to 140°F
Dimensions: 6.26 x 3.94 x 1.53 in
Backlight Display Time: 15s off without operation
No-load Loss: <8mA
Light Control Delay: 1 min
Solar Cables
Rating Voltage: 600W/1000V

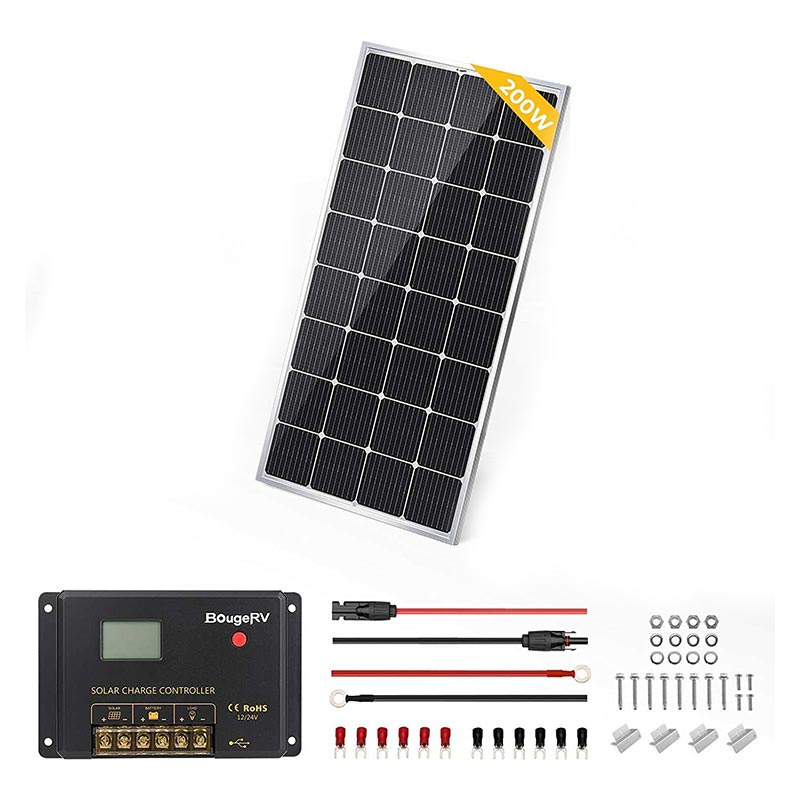

What's in the Box:
1 x 200W 12V 9BB Mono Solar Panel

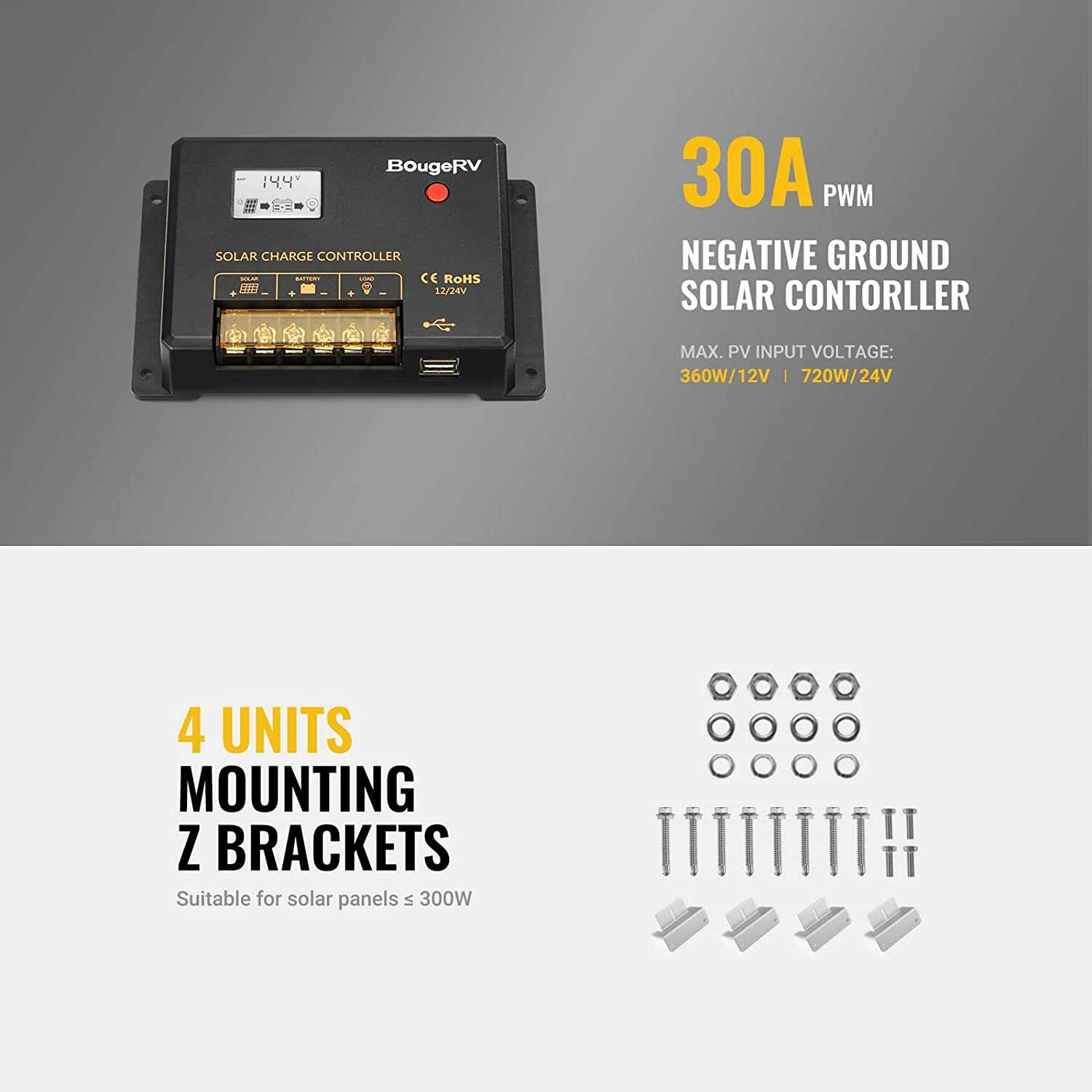

1 x Li 30Amp 23V/24V PWM Solar Charge Controller

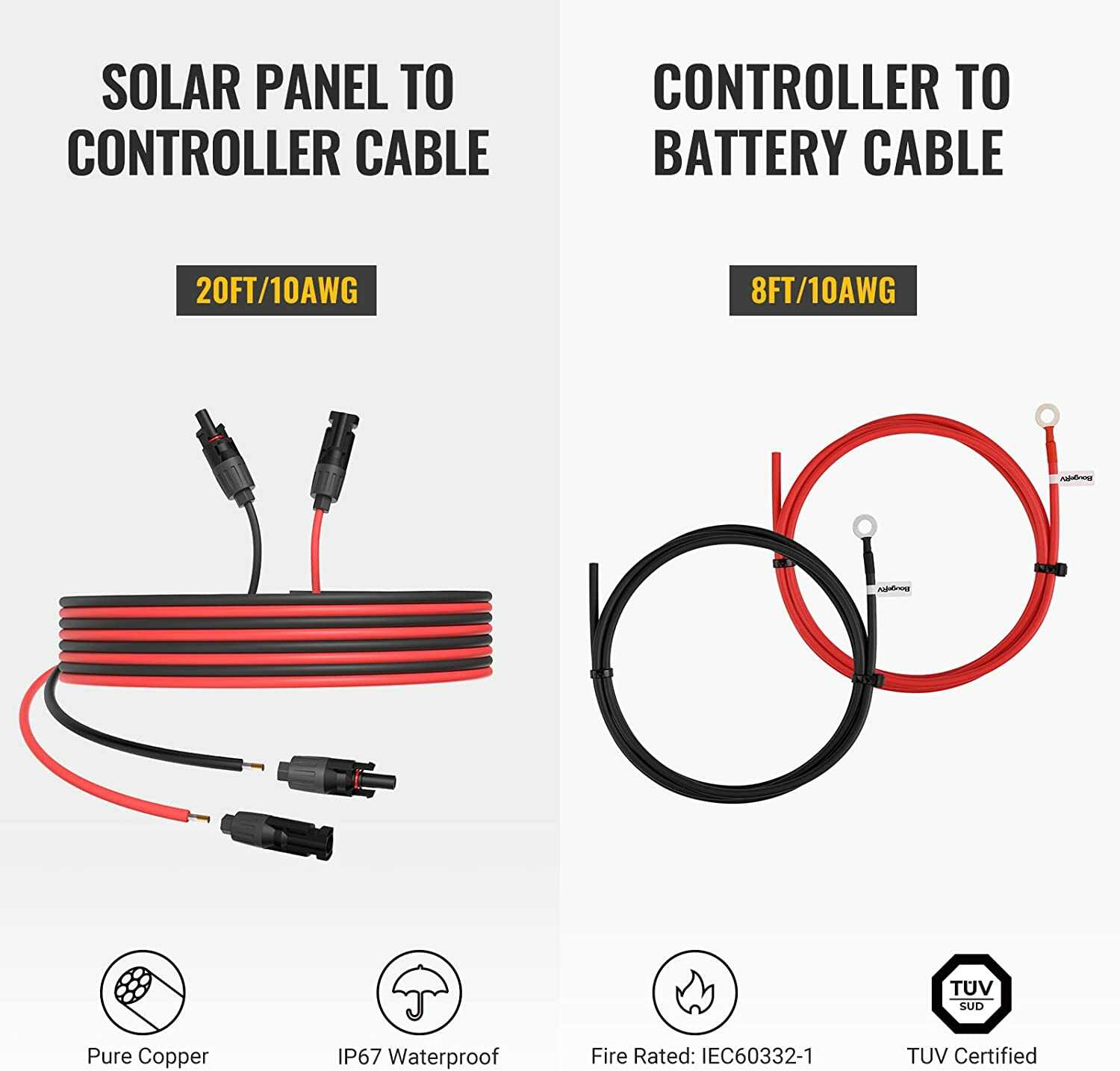

1 x Pair of Solar Extension Cable with Extra Free Connectors (20Ft. 10AWG)
1 x Pair of 8 Ft 10AWG Wire Copper Tray Cable
4 x Z Bracket
4 x M6-16 Hex Cap Bolt
4 x M6 Split Lock Washer
4 x M6 Hexagonal Nut
8 x M6 Flat Washer
8 x 11 Self-Drilling Cap Bolt
This BougeRV 200 Watt 12 Volt Solar Kit is a great choice for those planning to go off-grid. It comes with a high-quality monocrystalline solar panel, a charge controller, all necessary cables, and mounting hardware. The solar panel has 22.5% efficiency and is 22.8% more efficient than regular modules with a 9BB design. The negative ground solar controller protects from overcharging, over-discharging, short-circuit, and reverse polarity. It can generate 1200WH of power per day with 6 hours of daylight. It has a weather-resistant design, is efficient with no-load loss, and has hassle-free installation. The solar panel weighs 29.54 lbs with dimensions 58.27 x 26.38 x 1.38 in and a 18-month warranty. Ideal for RVs, cabins, boats, this kit helps you harness solar power for off-grid living.
